Packet Optical Transport - UTStarcom

NG-PTN

A highly scalable, agile and intelligent metro transport network based on the next generation HW and SW architecture of PTN. The product line offers support of up to 100GE interfaces, SDN-based automation features and advanced services, as well as a broad range of carrier-class features including network-wide time/clock synchronization, carrier class sub 50ms recovery resiliency, guaranteed QoS and SLA enforcement, end-to-end multi-layer OAM. The product line includes a complete line of network elements from access and edge to metro core high-performance devices.


Description

TN705E

The TN705E is compact and high-performance device based on MPLS-TP/CE technology. The product offers total capacity of 800Gbps and can support up to 6x100GE interfaces in a small form-factor chassis of 5U. It features full duplex switching fabric and redundancy for all critical modules. The TN705E is optimized for aggregation or metro core applications.

Features
  • 100GE/10GE/GE/FE, 10G POS interfaces
  • Multi service support: E-LINE, E-TREE and E-LAN services
  • 800Gbps Full-Duplex Switching Fabric
  • MPLS-TP/CE based
  • VPLS/H-VPLS support
  • Quality of service
  • Multiple OAM options, including  Y.1711and G.8113.1
  • Flexible network protection schemes and hardware redundancy
  • Comprehensive synchronization support including IEEE 1588V2 and Synchronous Ethernet
  • Unified element and network management
  • Modular carrier-class design

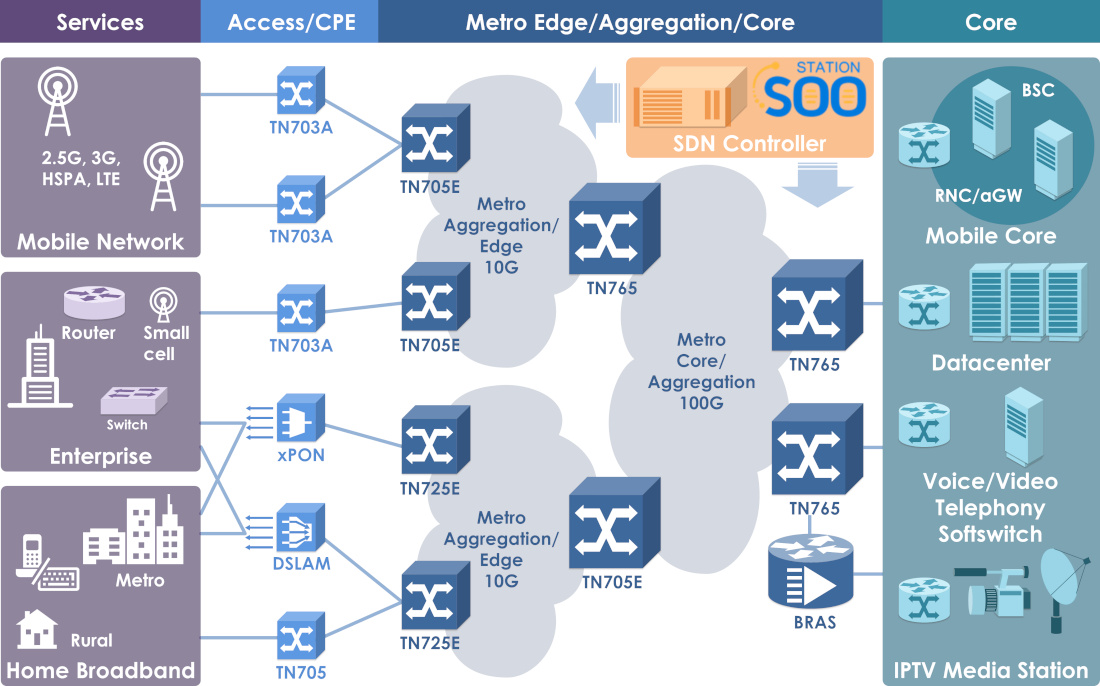

Network Architecture
Product Pictures
Data Sheet: NetRing TN705E
Brochure: Packet Optical Transport Solution
White Paper: MPLS-TP based Packet Transport Networks
